The swift and light weighted cutting head for agricultural use
The efficient cutting head for harvesting trees and bushes.
The grapple saw for intelligent attachment to roto-telehandlers or excavators.
Application Areas
- Fast harvest of small trees and bushes
- Harvest of short rotation plantations
- In rough terrain, hill areas and swamplands
- Cultivation and landscape maintenance
- For agricultural use on a farm loader
- Caution: Woodcracker CL is not suitable for dangerous tree felling. Secure hold of cut material can not be guaranteed. In this case we recommend our Woodcracker C series.
Key Facts
The fuelwood harvester Woodcracker® CL 190 was especially developed for the easy harvest
of weak wood up to 32 cm in diametre.
- Customized mounting options (e.g. excavator, farm loader)

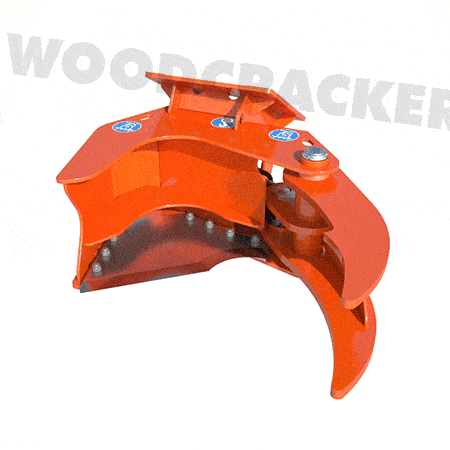

- Low-service and low-wear due to special cutting system
- Low net weight
- Clean cutting surface enables the plant to sprout again
- Also applicable in mini-forests for easy forest maintenance
Video
Download
| CL 190 rigid | CL 260 rigid | |
|---|---|---|
| Cutting diameter soft wood (in) | 9,8 | 12,6 |
| Cutting diameter hard wood (in) | 7,5 | 10,2 |
| Gripper opening = Diameter of shears (in) | 27 | 29,9 |
| Weight (fully equipped) (lb) | 463 – 683 | 775 – 1.390 |
| Recommended pump flow capacity * (gpm) | 11 – 21 | 13 – 26 |
| Recommended operating pressure (psi) | 3.625 | 4.061 |
| Service weight of carrier vehicle ** (t) | 2,5-7,5 | 6-14 |
| Optional: Autospeed | ■ | ■ |
| Optional: Collector | – | ■ |
| Optional: Cylinder swivel mechanism | ■ 2 x 48° | ■ 2 x 48° |
■ Available | – Not available
* Depending on operating mode or equipment. | ** Depending on specifications of the operation vehicle.
Technical modifications and figures are not binding. Subject to changes for reasons of further development.
