Woodcracker W

The compact wood splitter to split thick trunks.


The compact wood splitter to split thick trunks.

Application Areas

  • Splitting thick wood trunks with minimal effort
  • Can be used in all harvest and processing methods of strong wood
  • Pre-splitting of wood allows a natural drying process
  • Splitting tongs can be used as a gripper
Key Facts

woodcracker-w

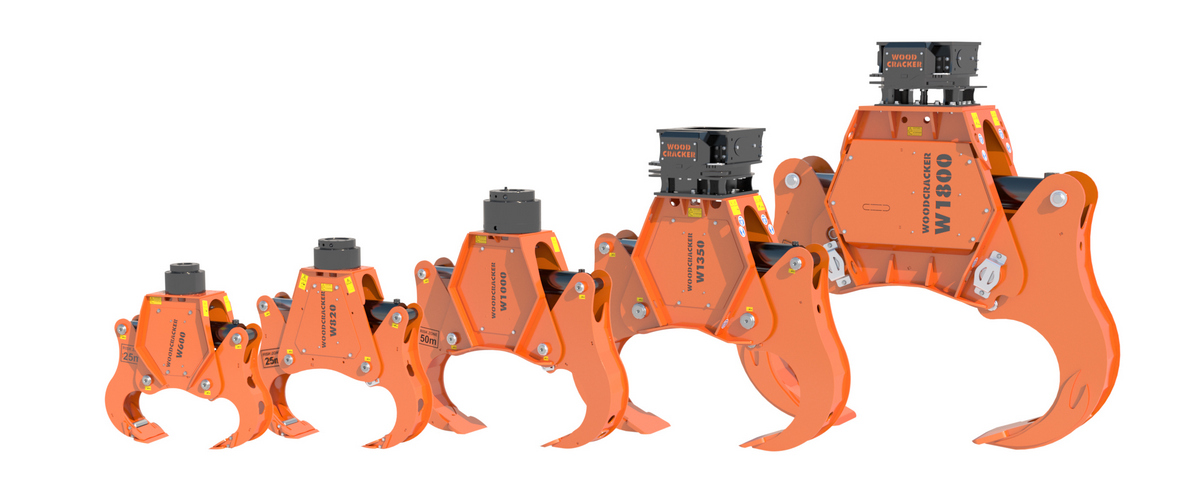

Woodcracker W: the premium wood splitting tongs, available in 5 machine sizes.

  • Versatile mounting possibilities from the tractor to the excavator
  • Sturdy, proven technology – low-service and low-wear
  • Endless turning rotator available as optional equipment
  • Autospeed allows for a higher split capacity
  • Roller system reduces the friction resistance and thereby minimizes the force exerted
  • The opening width does not determine the splittable diametre but only the largest end piece
  • Easy supply of the pre-split material in chippers
  • Pre-splitting wood allows a natural drying process and as a result an increase in biomass quality and energy yield
next tech

woodcracker-w-next-tech-englisch

Video



Download

Technical Data

W 600W 820W 1000W 1350W 1800
Tongs opening (in)24,432,340,953,972
Splitting force at 240 bar (lb)57.32057.32057.32075.000103600 *
Weight (basic model) (lb)6507951.2802.0954.390
Recommended litre capacity (gpm)6,5 – 166,5 – 1610 – 2121 – 4026 – 50
Recommended operating pressure (psi)2.750 – 3.6252.750 – 3.6252.750 – 3.6253.190 – 3.9153.480 – 4.350
Service weight carrier vehicle (max. t)610142030
Optional: Autospeed valve
Optional: Rotator

Patented
■ Available | – Not available
* At 320 bar working pressure
Technical modifications and figures are not binding. Subject to changes for reasons of further development.
