The flexible grapple saw for every angle
1
2
3
4
1
enables work behind obstacles
2
powerful 3-finger gripper
- for maximum of safety and perfect grip
- oversized cylinder
3
innovative hydraulic
easily lift tree parts vertically with precise hydraulic control
4
automatic chain tensioner
The chain has always the right tension.
Application Areas

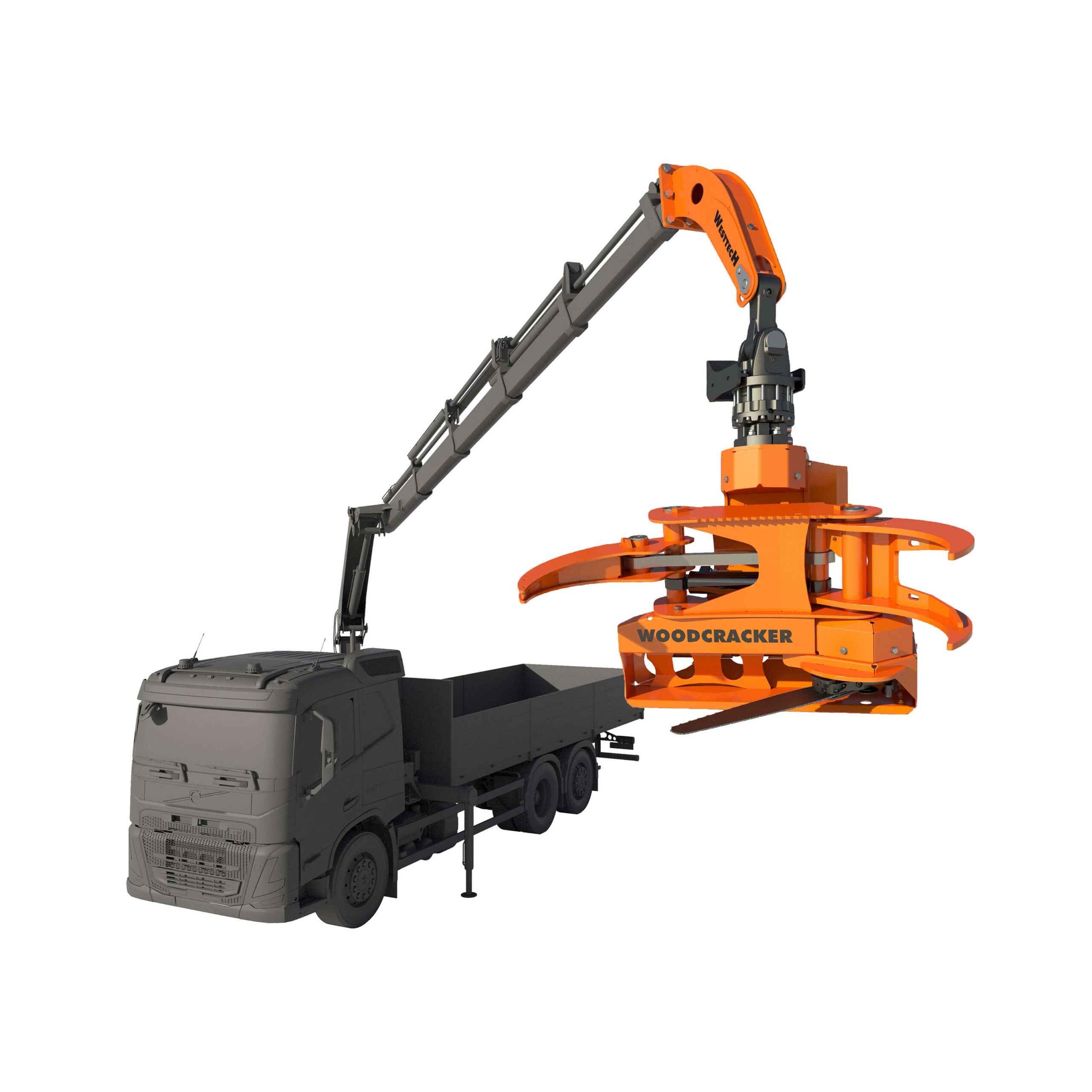

- Suitable for every standard crane, e.g. wood/recycling or loading cranes and for excavators, timber trailers, trucks or telehandlers.
- Extra long reach due to low deadweight
- Tree maintenance actions in urban areas

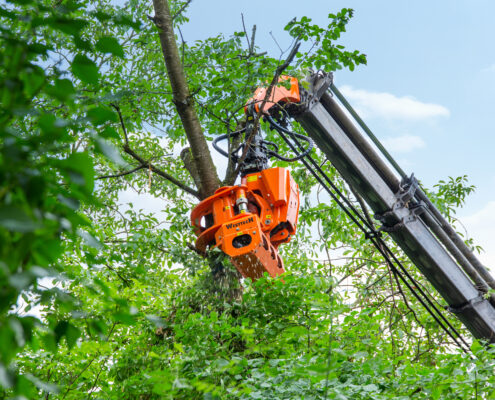

- On a crane for special tree removal and traffic safety work
- Can also be used as a wood gripper thanks to the lockable tilt function
- Different mounting options possible.
- Tree maintenance actions in urban areas.
Key Facts
- Designed for gimbal-mounting on a crane, excavator or telescope stage Woodcracker ® T.
- No self-initiated tilting.
- Manually lockable tilt function and saw, for usage as gripper.
- Manutilt – is the carrier vehicle equipped with more than one hydraulic circuits, the tilt function can be controlled independently from the gripper.
- Large cutting diameter despite low deadweight.
- User-friendly operation.
- Powerful 3-finger gripper.
- Hydraulic hoses are well protected.
- The machine fits on any forestry crane instead of the existing gripper.
- KTL-primed (cathodic dip painting) and powder top coat
- Low-service and low-wear due to special cutting system.
- Made of high-strength Hardox ® steel.
Options
- Quick coupler QC10
- Autotilt – Due to sophisticated hydraulic control, it is possible to withdraw parts of the tree vertically from its setting. Therefore, the grip saw can be operated with only one double-acting hydraulic circuit.
