Woodcracker L

The wood splitting tongs to split thick trunks.


The wood splitting tongs to split thick trunks.

Application Areas

  • Splitting thick wood trunks
  • Can be used in all harvest and processing methods of strong wood
  • Pre-splitting wood for further processing of split logs or chipped wood material
  • Easy supply of the pre-split material to chippers
  • Pre-splitting wood allows a natural drying process
Key Facts

woodcracker-L

Woodcracker L: the quick and flexible wood splitter with an excellent cost/benefit ratio.

  • Various mounting options to different carrier vehicles, mainly semi-stational on forwarders, wood cranes or chipping machines
  • Optimal cost/benefit ratio
  • Practical helper during the harvest process
  • Sturdy and proven technology – low-service and low-wear
  • Minimal effort, even with the thickest root trunks
  • Flat design for any possible machine application
next tech

Optional: Woodcracker L with standing fixture

Easy transport of the Woodcracker on the carrier vehicle.

Offloading on the application area is possible with a forwarding crane.

plusWoodcracker L is stabilized by the carrier vehicle.

Video

Woodcracker L540 am Hoflader



Download

Technical Data

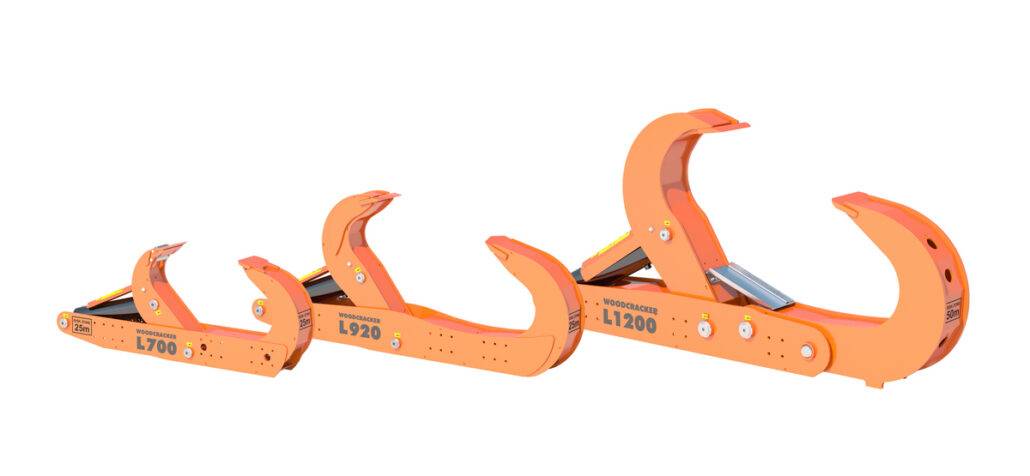

L 540L 700L 920L 1200
Tongs opening (in)21,327,635,447,2
Splitting force (depending on operating pressure)(lb)up to 30.800up to 48.500up to 48.500up to 72.750
Weight (Basic model) (lb)4306288152.425
Recommended pump flow capacity (gpm)approx. 6,5 – 16approx. 6,5 – 16approx. 6,5 – 16approx. 16 – 39,6
Recommended operating pressure (psi)2.600 – 3.5002.600 – 3.5002.600 – 3.5003.200 – 3.900
Optional: Standing fixture
Optional: Excavator attachment
Optional: Farm loader attachment

Patented
■ Available | – Not available
Technical modifications and figures are not binding. Subject to changes for reasons of further development.
